MD in a Box
Interactive 2D binary molecular dynamics simulation running on a Raspberry Pi Pico 2 with a colour display. Designed as a demonstration device for the RUC Physics Department — shows gas, liquid, and crystal phases; phase separation; and size-mismatch effects, all in real time on a handheld device.
Based on the browser-based MD simulation by Ulf R. Pedersen: https://urp.dk/md/
| Video demonstrations (not automatically shown on Github) |
|
|---|---|
| Demonstration of physical interaction |
Demonstration of temperature change |
| Exampel configurations | |
|---|---|

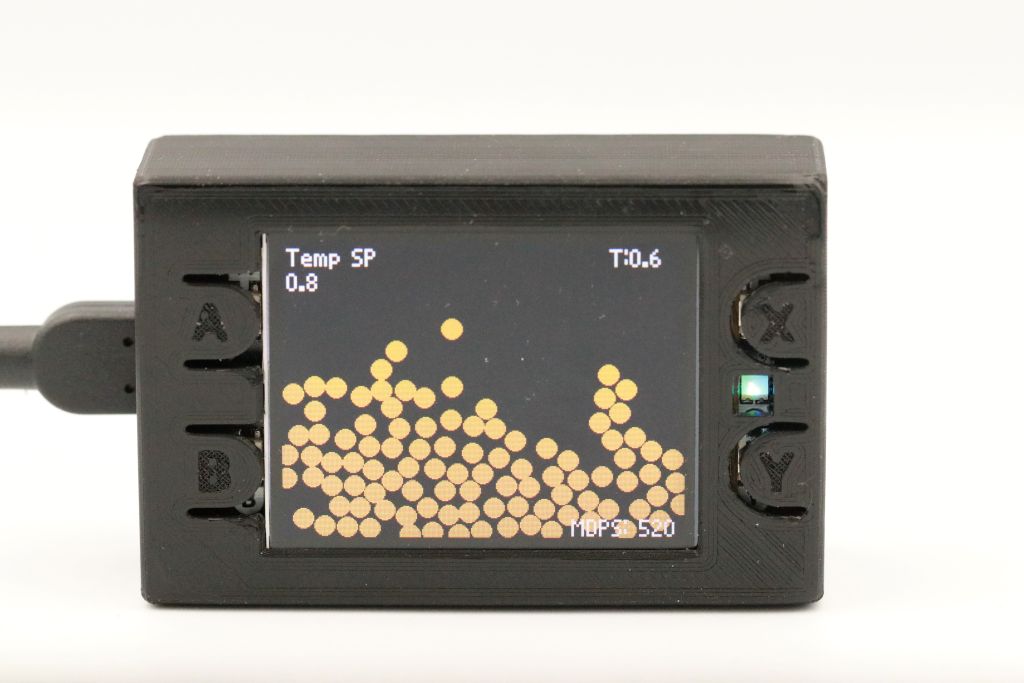

 Liquid phase (monoatomic) |

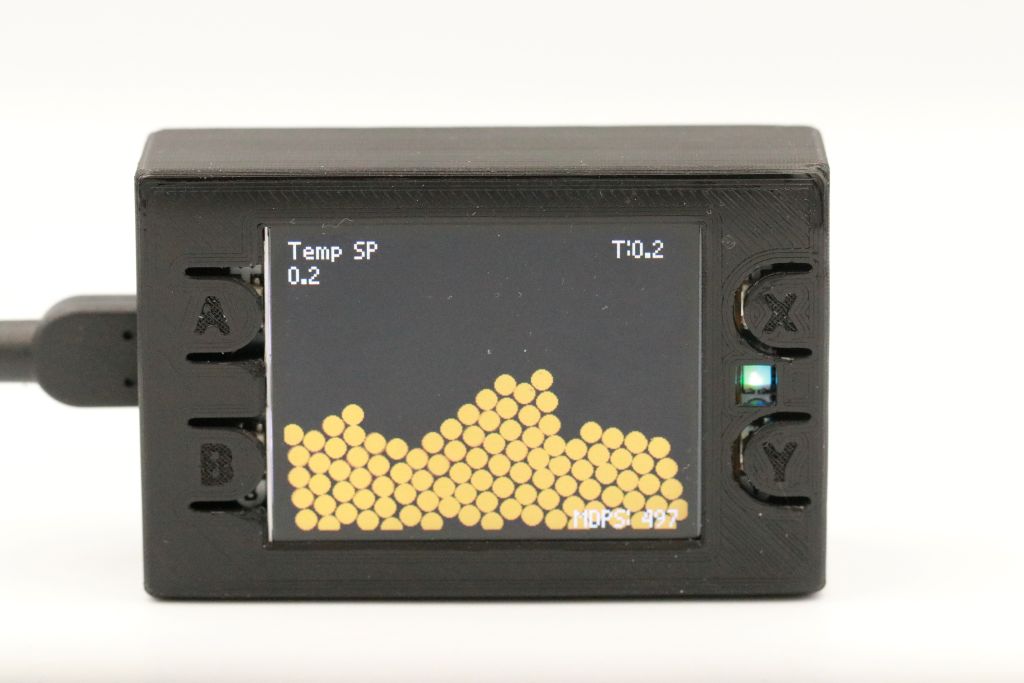

 Crystal phase (monoatomic) |

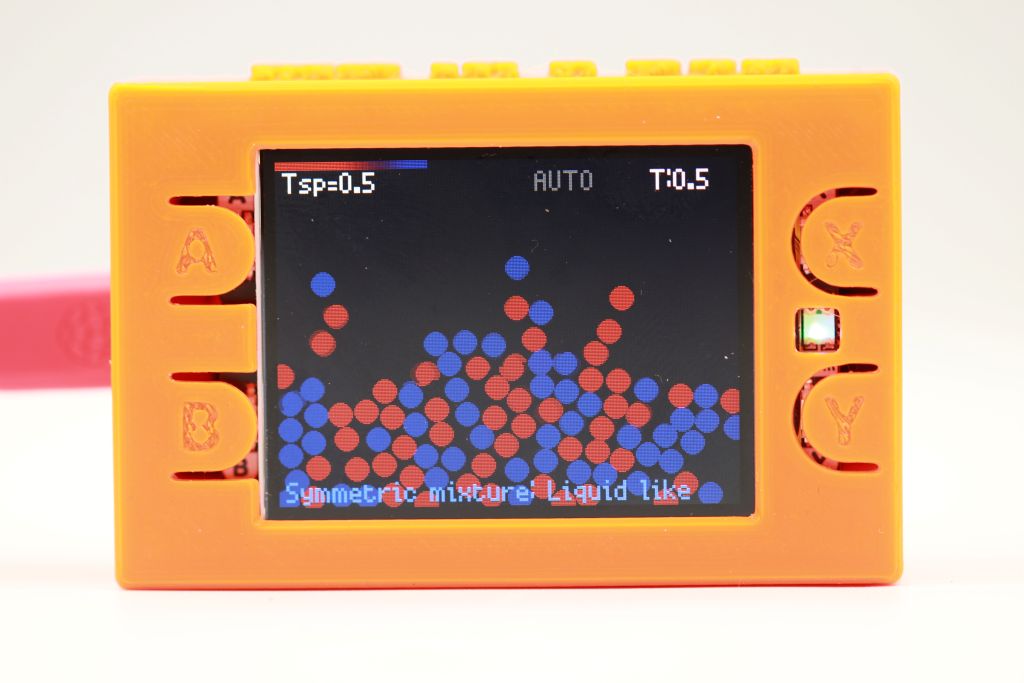

 Binary LJ liquid phase |

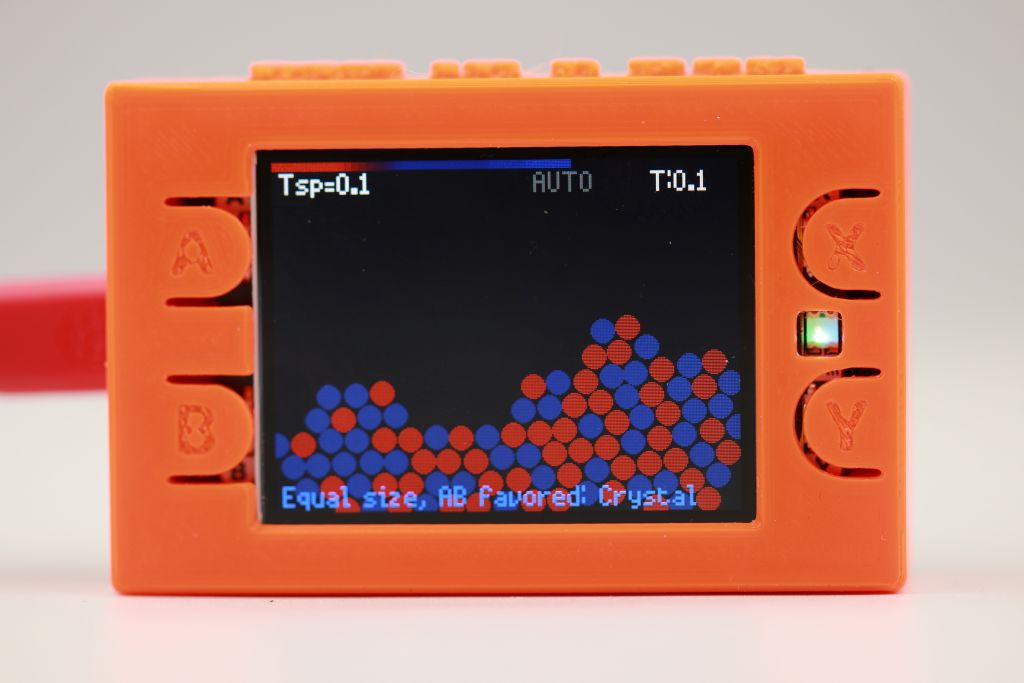

 Binary LJ crystal phase |

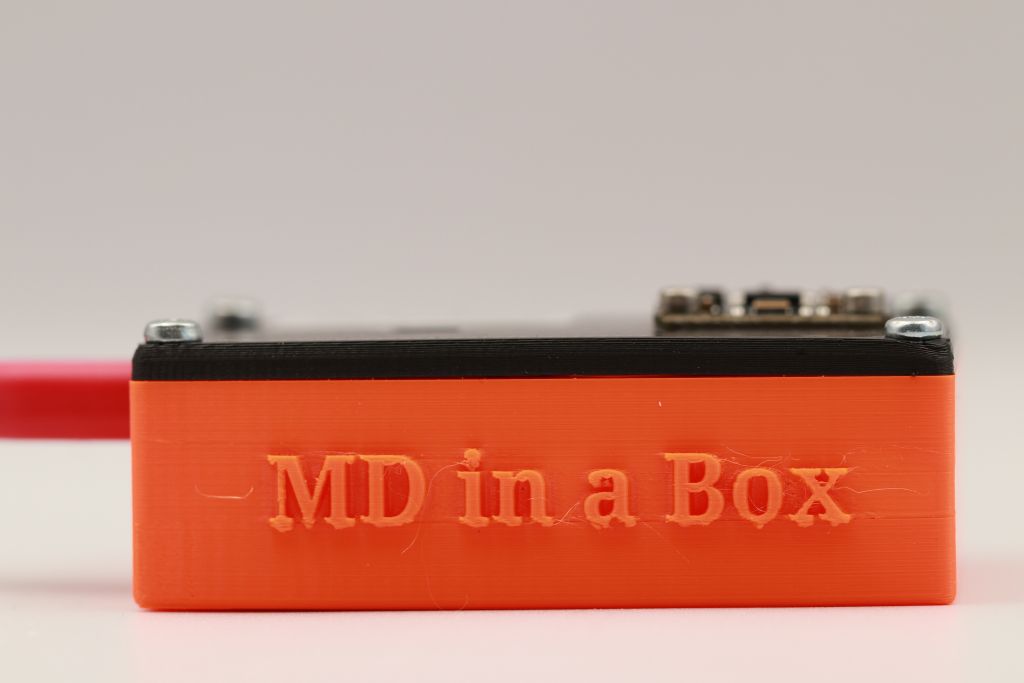

 Top view |

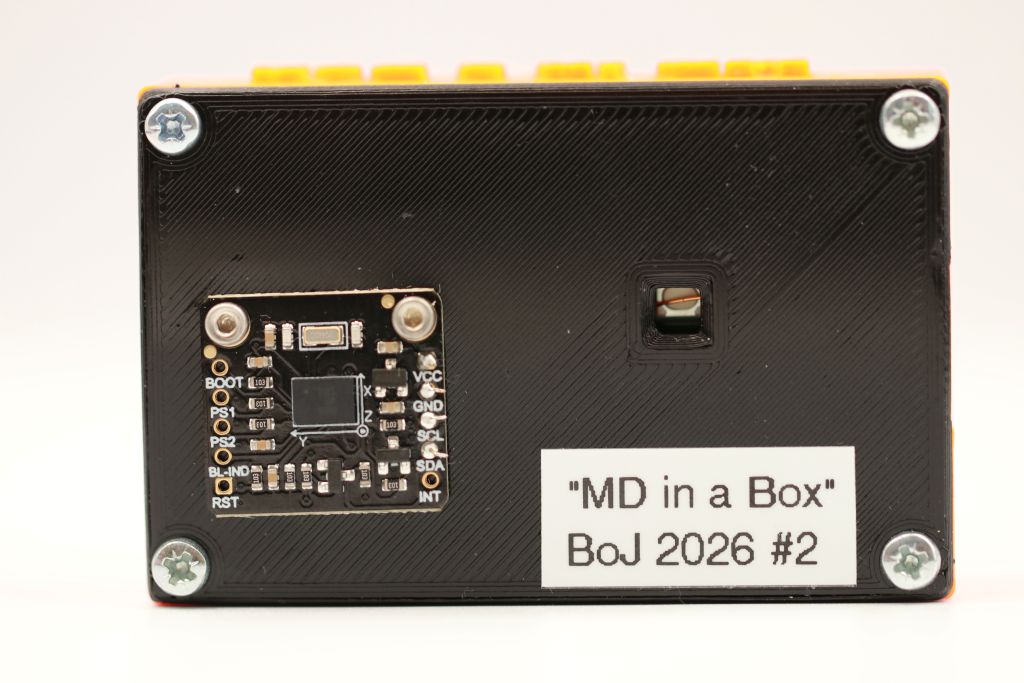

 Back view with accelerometer |
Physics
Two atom types — A (red) and B (blue) — interact via Lennard-Jones pair potentials. The relative size and cross-species interaction strength (ε_AB) are tunable at runtime, enabling:
- Phase separation — when ε_AB ≪ 1, A and B segregate into domains
- AB attraction — when ε_AB ≫ 1, A and B prefer to stay mixed
- Size mismatch — different radii produce interesting structures
| Parameter | Description |
|---|---|
| σ_AA = 2 × r_A | LJ diameter for A–A pairs |
| σ_BB = 2 × r_B | LJ diameter for B–B pairs |
| σ_AB = r_A + r_B | Lorentz–Berthelot mixing rule |
| ε_AA = ε_BB = 1 | Fixed well depths |
| ε_AB | Tunable A–B well depth |
| Cutoff | 3.5 × r_A |
Integrator: Leap Frog Thermostat: Langevin (friction + Gaussian noise) Walls: 1/r⁶ soft repulsion from each boundary, with emergency hard-wall clamp
Hardware
| Component | Details |
|---|---|
| Raspberry Pi Pico 2 | RP2350, dual-core ARM Cortex-M33 @ 150 MHz, 520 KB RAM |
| Pico Display Pack 2.0 | 320×240 pixel display (Pimoroni) |
| BNO055 9-axis IMU | Gravity vector + linear acceleration (optional) |
Total hardware cost: ~€65
Architecture
Both CPU cores run in parallel:
- Core 0 — Display rendering (PicoGraphics, ~30 FPS) and button input
- Core 1 — Physics loop, running C-accelerated MD steps continuously
Inter-core communication uses module-level shared globals (positions, temperatures, parameter requests). The BNO055 accelerometer feeds device tilt (gravity direction) and movement (box frame velocity) into the physics on Core 1.
Performance
The physics loop (LJ forces + Leap Frog + Langevin thermostat) is implemented
as a custom C extension to ulab (user.c). A unified simulation class
(md_sim.py) auto-detects the available backend at startup:
| Backend | Runs on | Description |
|---|---|---|
ulab_c |
Pico + C build | C extension — fastest |
ulab |
Pico, any build | Pure Python with ulab arrays |
cpython |
Desktop | NumPy — for testing |
Performance measured on Pico 2, no display (MD steps/second):
| N atoms | ulab (MDPS) | ulab + C (MDPS) | Speedup |
|---|---|---|---|
| 16 | 78 | 12,674 | ~160× |
| 25 | 35 | 6,816 | ~195× |
| 36 | 18 | 3,960 | ~220× |
| 64 | 5 | 1,553 | ~310× |
| 100 | — | 748 | — |
In the full demo (display + accelerometer + 100 atoms): ~500 MD steps/second.
Demo Mode
The device starts in Demo mode, which autonomously cycles through 8 scripted scenarios. Each scenario runs the same temperature protocol:
Hot gas → Cooling → Liquid-like → Cooling → Crystal → Hard quench → Crystal → Melting
| # | Title | Key parameter |
|---|---|---|
| 1 | Monoatomic system | r_NB = 0 (pure A) |
| 2 | Symmetric mixture | ε_AB = 1.0 (A and B behave identically) |
| 3 | Same size, AB disfavored | ε_AB = 0.1 → phase separation |
| 4 | Same size, AB favored | ε_AB = 2.0 → AB attraction |
| 5 | Different size, AB disfavored | r_B = 1.5×r_A, ε_AB = 0.5 |
| 6 | Different size, AB favored | r_B = 1.5×r_A, ε_AB = 2.0 |
| 7 | Few large, AB favored | 10 % large B, ε_AB = 2.0 |
| 8 | Few small, AB favored | 10 % small B, ε_AB = 2.0 |
Demo button controls
| Button | Action |
|---|---|
| A | Cycle info overlay: temperature setpoint / LJ parameters / gravity |
| X | Skip forward to next scenario (fresh simulation) |
| Y | Skip backward to previous scenario (fresh simulation) |
| B press | Switch to Manual mode (keeps current simulation state) |
| A + B | Shutdown |
Manual Mode
Press B in Demo mode to enter Manual mode and take full control. The simulation continues from the current state; the temperature ramp is paused.
Manual button controls
| Button | Action |
|---|---|
| A | Cycle selected parameter |
| X | Increase selected parameter |
| Y | Decrease selected parameter (at T=0: first press arms quench; second press within 2 s zeroes all velocities) |
| B release | Return to Demo mode (T-ramp resumes, LJ params kept) |
| A + B | Shutdown |
Adjustable parameters (basic mode — first 3)
| Parameter | Description |
|---|---|
| Temp SP | Thermostat target temperature |
| Gravity | Downward gravity magnitude |
| Pause | Freeze / resume physics |
Set EXPERT_MODE = True in run_show_sim_pico.py to expose all 7 parameters
(adds: Coupling · r_NB · r_sizeB · ε_AB).
Accelerometer (if connected)
- Tilt the device → gravity direction follows orientation
- Shake it → box frame moves, transferring momentum to particles (heating)
Files
Core simulation
| File | Description |
|---|---|
md_sim.py |
Unified MDSimulation class — auto-selects backend (ulab_c / ulab / cpython) |
user.c |
Custom ulab C extension: full physics loop (LJ forces + Leap Frog + Langevin) |
bno055_handler.py |
BNO055 accelerometer wrapper with axis remapping |
Applications
| File | Runs on | Description |
|---|---|---|
run_show_sim_pico.py |
Pico | Main application — Demo + Manual modes, dual-core, display |
run_show_sim_numpy_pc.py |
Desktop | Desktop test with optional live matplotlib plot |
Benchmarks
| File | Runs on | Description |
|---|---|---|
run_test_all.py |
Pico / Desktop | Text benchmark for all backends |
run_test_pico_display.py |
Pico | Visual benchmark with display output, button-paced |
Documentation
| File | Description |
|---|---|
| MD in a Box — User Guide | Full user guide (PDF) |
Quick Start
Desktop test
python3 run_show_sim_numpy_pc.py
Upload and run on Pico
# Copy files to Pico
mpremote fs cp md_sim.py :
mpremote fs cp bno055_handler.py :
mpremote fs cp run_show_sim_pico.py :
# Run main demo
mpremote run run_show_sim_pico.py
# Run benchmark (no display needed)
mpremote run run_test_all.py
Building the Firmware
The C extension requires a custom MicroPython + ulab build. Place user.c in:
ulab/code/user/user.c
and enable it by setting ULAB_HAS_USER_MODULE in ulab.h.
For full Pico Display 2.0 support, build against the Pimoroni CI environment:
https://github.com/pimoroni/pimoroni-pico-rp2350
The script setup_and_build_firmware.sh automates this (tested February 2026;
may need updating if the Pimoroni CI changes).
BNO055 accelerometer support
Copy bno055.py and bno055_base.py from the MicroPython IMU library to the
device:
https://github.com/micropython-IMU/micropython-bno055
The simulation runs fine without the accelerometer — gravity defaults to a fixed downward value.
References
- Ulf R. Pedersen’s browser MD simulation: https://urp.dk/md/
- ulab (numpy for MicroPython): https://github.com/v923z/micropython-ulab
- Pimoroni Pico libraries: https://github.com/pimoroni/pimoroni-pico
- MicroPython-bno055: https://github.com/micropython-IMU/micropython-bno055
- ``Pimoroni Display Pack 2 Case’’ by JeffCurless: https://www.printables.com/model/920520-pimoroni-display-pack-2-case
License
MIT — see LICENSE.
Authors
Bo Jakobsen, IMFUFA, Roskilde University (boj@ruc.dk)
Based on the browser-based MD simulation by Ulf R. Pedersen (urp@ruc.dk)
